Approvals
USA: FAA TSO-C70a, Type II
Germany: LBA No. 40.320/13,
Japan: JCAB No. 535

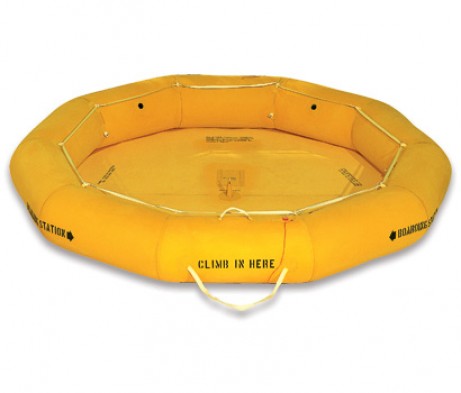

- For Air Taxi, Corporate and General Aviation
- Single Tube
- Compact, lightweight. Constructed of neoprene coated nylon.
- High tech inflation system.
- Competitively priced.
Rated Capacity: 9
Overload Capacity: 13
| Capacity |
Rated: 9 Persons Overload: 13 Persons |
| Approval |
USA: FAA TSO-C70a, Type II Germany: LBA No. 40.320/13, Japan: JCAB No. 535 |
| Color |
Raft: Yellow Carrying case: Yellow Canopy: Orange |
| Diameter Raft Tube | 14.25 in. (36.2 cm) |
| Inflated Volume: @ 1.50 psig | Total: 26.86 ft.3 (0.76 m3) |
| Tube Volume Per Person: @ rated capacity | Total: 2.98 ft.3 (0.09 m3) |
| Total Tube Buoyancy | 1676 (760.23 kg) |
| Buoyancy Per Person: @ rated capacity | 186 lbs. (84.4 kg) |
| Total Deck Area | 33.0 ft.2 (3.06 m2) |
| Deck Area Per Person: @ rated capacity | 3.67 ft.2 (0.34 m2) |
| Tube Operating Pressure | 2.0 psig (0.138 bar) |
| Pressure Relief Valves |
Open: 3.0 psig (0.207 bar) Close: 2.0 psig (0.138 bar) |
| Tube Burst Pressure | Over +10 psig (+0.69 bar) |
| Inflation System |
Cylinder Size: 205 in.3 (3.36 cm3) Cylinder Type: DOT 3AA2100 Charge Weights: CO2: 4.46 0.06 lbs. (2.02 0.03 kg) |
| Environmental Limits | |
| Temperature |
Functional Range: -20 to 160 oF (-29.8 to 71 oC) Storage Range: -65 to 160 oF (-54 to 71 oC) |
| Humidity | Up to 95% relative humidity |
| Altitude | -2000 to 45,000 ft. above sea level |
| Service Life | Indefinite if raft continues to pass periodic maintenance inspection |
| Frequency Of Inspection | Every 12 months, recommended. |
