2-Piece Color Weather Radar System

Brand: Honeywell Bendix/King

Features

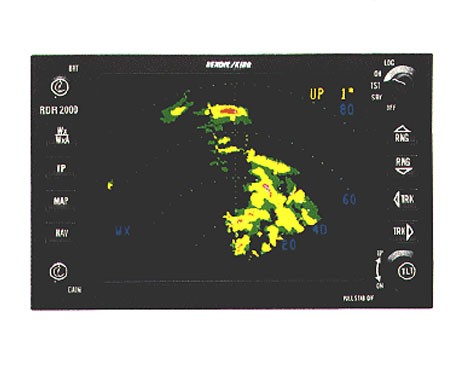

    * 2 piece Color Radar System consisting of RS-181A Radar Sensor and IN-182A Radar Indicator
    * Designed specifically for use in medium to light twin engine aircraft of turbo jet, turbo prop, or piston engine design
    * Detects, locates, and presents any enroute weather associated with thunderstorms and high density rainfall in four color format
    * Consists of radar sensor with line-of-sight stabilized 10 or 12 inch antenna array (see table below)
    * System provides 190 mile (maximum) avoidance range capability with 12 inch antenna and operates on a frequency of 9345 MHz (X-band) with a nominal peak of 1 KW
    * System can be used, day or night, for ground mapping which permits displaying prominent topographical features in addition to primary weather mapping purpose
    * Indicator can be expanded to display multifunction digital data such as navigation and radio navigation information, flight log information, and several pages of checklist information
    * Vertical profile version available shows height of weather activity (see table below)
    * Indicators available with black or gray bezel (see table below)
