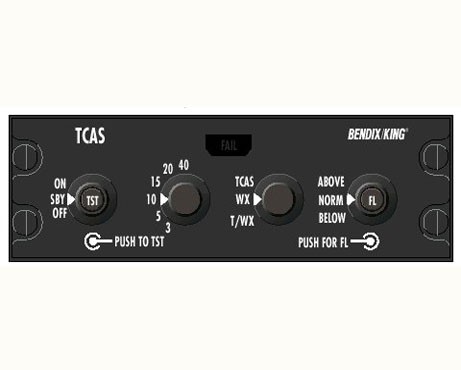

TCAS I Control

Brand: Honeywell Bendix/King

Features

    * Digial control that provides control of CAS-66A TCAS I System
    * Interfaces various external discrete inputs and supplies ARINC 429 and control signals necessary for operation of TCAS I system
    * DZUS mounted
    * Range control (RNG) to select range on traffic display (in nautical miles) - certain versions, see table below
    * Flight Level (FL) control repalces intruder's relative altitude with absolute altitude in flight level format for 15 seconds
    * ABOVE/NORMAL/BELOW control selects altitude display limits
    * Test (TST) switch initiates comprehensive system self test lasting approximately 12 seconds
    * Standy (SBY) control places TCAS in standby
    * Power (PWR) control turns system ON or OFF
    * Traffic/Weather (T/WX) switch is used installations with radar indicators acting as traffic display to switch between Weather Only (WX), Weather with Traffic Overlaid (T/Wx) and Traffic Only (TCAS) modes - certain versions, see table below
    * AUTO/MANUAL switch is used in EFIS installations to control TCAS display on an MFD - certain versions, see table below
    * AUTO mode automatically displays available traffic on MFD
    * MANUAL mode displays available traffic only when TCAS is selected on EFIS controller
    * Lamps can be powered by either 5V or 28VDC
    * Black or gray bezel (see table below)
    * Dimming annunciator (see table below)
