Approvals
USA: FAA TSO-C70a, Type I

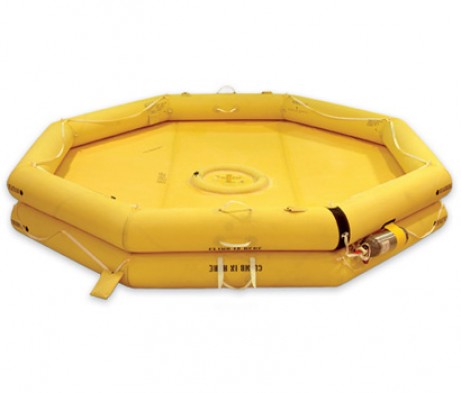

- For Commercial Airlines and Air Cargo use.
- Twin tube.
- Compact, lightweight. Constructed of neoprene coated nylon.
- High tech inflation system
- Competitively priced.

Rated Capacity: 32
Overload Capacity: 48



Capacity Rated: 32 Persons
Overload: 48 Persons
Approval USA: FAA TSO-C70a, Type I
Color Tube: Yellow
Canopy: Fluorescent red
Diameter Raft Tube 13.00" (330.2mm)
Inflated Volume: @ 1.50 psig Tube 1: 20.14 ft.3 (0.570 m3)
Tube 2: 20.14 ft.3 (0.570 m3)
Total: 40.28 ft.3 (1.14 m3)
Tube Volume Per Person: @ rated capacity 2.87 ft.3 (0.081 m3)
Total Tube Buoyancy 5440 lbs. (2467.5 kg)
Buoyancy Per Person: @ rated capacity 170 lbs. (77 kg)
Total Deck Area 115.2 ft.2 (10.70 m2)
Deck Area Per Person: @ rated capacity 3.6 ft.2 (0.334 m2)
Tube Operating Pressure Minimum: 1.5 psig (0.103 bar)
Nominal: 2.0 psig (0.138 bar)
Maximum: 3.0 psig (0.207 bar)
Pressure Relief Valves Open: 3.0 psig (0.207 bar)
Close: 2.0 psig (0.138 bar)
Tube Burst Pressure Over +10 psig (+0.69 bar)
Inflation System Cylinder Size: 550 in.3
Cylinder Type: DOT E 10945-4500, TC-SU 5141 310
Carbon and Glass Fiber Composite
Charge Pressure: 4500 psig
Charge Weights: CO2 : 2.50 to 2.52 lbs. (1.13 to 1.14 kg)
Charge Weights: N2 : 5.44 to 5.54 lbs. (2.47 to 2.51 kg)
Environmental Limits
Temperature Functional Range: -40 to 140 oF (-40 to 60 oC)
Storage Range: -65 to 160 oF (-54 to 71 oC)
Humidity Up to 95% relative humidity
Altitude -2000 to 45,000 ft. above sea level
Service Life Indefinite if raft continues to pass periodic maintenance inspection
Frequency Of Inspection Every 3 years, maximum.
