Accepts DME channeling from Bendix/King serial, 2x5 and ARINC 429 serial tuning formats
Provides outputs for ARINC formats 568 and 429, analog pulse pairs, analog pulse plus Bendix/King Serial Data for DME indicators
Provides 40 mv/nm for analog RNAVs
Can be used with KDI-572 or KDI-574 DME indicators
Can be channeled automatically by Bendix/King digital or conventional mechanical NAV frequency selector systems
Models available with -85 or -90dBm receiver acquisition sensitivity (see table below)
Models available with socketed input/outout board for use in conjunction with KDA-1120 ARINC adapter (see table below)
Models available for use in KNS-660 Navigation Management System (see table below)
Models available with DME Track Flag Output (see table below)
Models available with EFIS compatibility which means self test sequence is on 3 second intervals while all other units are on 1 second interval (see table below)
Models available with data buss compatible with Collins TCN-118 TACAN (see table below)

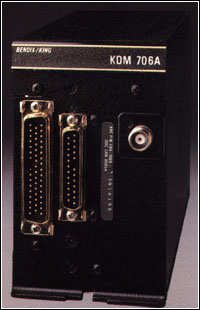

Similar to KDM-706 in # of channels and power (see KDM-706 for complete difference)
TSO'd
18 to 33VDC operation
Характеристики
Size: 3.0"W x 5.25"H x 12.80"L
Transmitter Frequency Range: 1025 to 1150 MHz
TSO Compliance: C66a, Category A2E1/A/MNO/EXXXXSZAAAA DO 160A
Design: All solid-state, electronically tuned by single-crystal, digital frequency synthesizer. Range, speed, and time-to-station measured digitally, using LSI circuits
Data Outputs: Analog pulse pairs, Analog rate pulse, 40mV/nm DC output, BCD serial data, BNR, BCD, channel serial data
Channel Selection Inputs: Serial Data from KDI-572, 574, or KFS-564 / 2x5, shifted BCD or slip code for DME channel selection
Weight: 5.5 lbs.
Receiver Frequency Range: 962 to 1213 MHz
Altitude: To 70,000 feet
Operating Temperature: -55C to 70C
Channel Capability: 252 UHF channels
Suppression: Bilateral Pulse characteristics
Модификации
Чертежный номер
Описание
066-1066-11
With -90dBm sensitivity, Socketed I/O Board
066-1066-20
With -90dBm sensitivity, Socketed I/O Board
066-1066-21
With -85dBm sensitivity
066-1066-22
With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board
066-1066-23
With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board, DME Track Flag Output
066-1066-24
With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board
066-1066-25
With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board, DME Track Flag Output, EFIS Compatible
066-1066-31
With -90dBm sensitivity, TACAN Compatible, Socketed I/O Board
