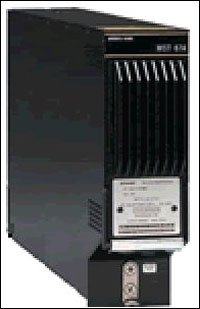

Remote mounted Mode S Transponder designed to fulfill role of airborne beacon equipment
Designed TO MEET TSO C112 FAA specification for ATCRBS/Mode Select Airborne Transponder System
Fully compatible with conventional Mode A and C transponder formats
TCAS versions permit rapid transmission of compressed bursts of communications, enabling on-board processors to coordinate between TCAS-equipped aircraft
Modem-like feature also permits exchange of other useful information such as weather forecasts, safety advisories and terminal data directly to pilot
Contains automatic self-test
Can be used with either panel-mount KFS-578A control unit with gas discharge display or DZUS-mount CTA-81A control unit with liquid crystal display (not applicable to -2001 and -2101 P/Ns)
Both control units also serve as aircraft's TCAS controller
Non TCAS or TCAS compatible versions available (see table below)
Version available with remote IDENT features allowing for IDENT transmission from source other than control unit (see table below)
Versions available with limited or full Built In Test Equipment fault annunciation [BITE]
(see table below)
Versions available with Limited Level 2 data link capability that supports TCAS only as defined by DO-181A MOPS (see table below)
Versions available with Level 3 (Comm A/B and Comm C ELM) datalink and Flight ID reporting which also have seperate ADLP input/output ARINC 429 ports as defined by DO-181A MOPS and ARINC 718 (see table below)
Versions available with Flight ID ARINC 429 input port as defined by DO-181A MOPS and ARINC 718 (see table below)
Version available with burst tuning compatible with "burst mode" control word format where tuning data is transmitted only during tuning activity and not refreshed in between (see table below)
Enhanced versions available to comply with Elementary and Enhanced Surveillance Mode S mandates (-2001/2101 versions)
-0601, -1301, -1602 non-enhanced versions can be upgraded to -2101 version ($8000 est.)
-2001 non-diversity unit can be upgraded to -2101 unit by the factory, Olathe facility or Toulouse France facility
-2001 and -2101 P/Ns only compatible with PS-550 and PS-578 (KFS-578A replacement) which include Flight ID entry
Transmit Reply Rate Capability: Rate limits of replies ATCRBS 750 PRF, Mode S 50 PRF
Altitude Inputs: Dual ARINC 575 Air Data (ARINC 419), Dual ARINC 706 Air Data (ARINC 4219), Dual Gillham (Mode C Gray Code)
Maintenance Inputs: Per ARINC 604, (ARINC 429)
Flight ID Input: Per ARINC 718, (ARINC 429)
Squitter: Transmitted at 1 +- 0.2 sec. random, full self verification of every squitter's data and occurrence
Модификации
Чертежный номер
Описание
066-01143-0201
Limited BITE, Non TCAS Compatible, No Burst Tuning, No Remote IDENT, Level 2 Data Link, No Flight ID Reporting
066-01143-0301
Full BITE, TCAS Compatible, No Burst Tuning, No Remote IDENT, Level 2 Data Link, No Flight ID Reporting
066-01143-0601
Full BITE, TCAS Compatible, With Burst Tuning, With Remote IDENT, Level 2 Data Link, No Flight ID Reporting
066-01143-1101
Limited BITE, TCAS Compatible, No Burst Tuning, No Remote IDENT, Level 3 Data Link, With Flight ID Reporting
066-01143-1201
Limited BITE, Non TCAS Compatible, No Burst Tuning, No Remote IDENT, Level 3 Data Link, With Flight ID Reporting
066-01143-1301
Full BITE, TCAS Compatible, No Burst Tuning, No Remote IDENT, Level 3 Data Link, With Flight ID Reporting
066-01143-1602
Full BITE, TCAS Compatible, No Burst Tuning, No Remote IDENT, Level 3 Data Link, With Flight ID Reporting (same as -1301 but tested to DO-160C for RF signal and lightning suspectibility)
066-01143-2001
Flight ID, Surveiilance Identifier (SI) codes, Non-diversity version, Enhanced Surveillance, Provisions for ADS-B Extended Squitter, Only compatible with PS-550 and PS-578 controls
066-01143-2101
Flight ID, Surveiilance Identifier (SI) codes, Change 7 compliance / diversity, Enhanced Surveillance, Provisions for ADS-B Extended Squitter, Only compatible with PS-550 and PS-578 controls
