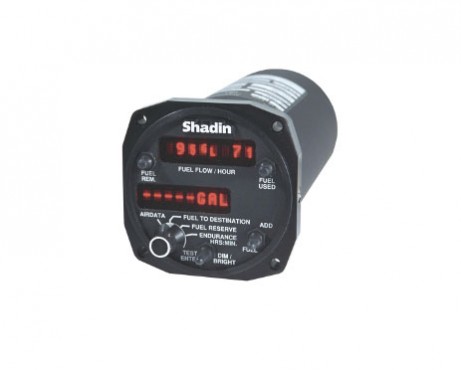

DigiData™, is the affordable new generation Fuel/Air data System that correlates data from your Loran-C or GPS receiver. DigiData calculates and displays dynamic, real-time fuel flow, endurance, consumption, reserve, efficiency, and now, automatic fuel cost calculations, in a single, centralized display. Even older Loran units have the capacity to interface with DigiData, providing enhanced function that rivals sophisticated avionics.

Features

    * Fuel/Airdata System displaying fuel flow information and NAV information from interface with existing GPS or LORAN receivers
    * Panel mounted version of ADC-200 Fuel/Airdata computer
    * Provides E-6B data such as pressure altitude, density altitude, outside and true air temperature, winds aloft, wind component (speed & direction), indicated and true airspeed, ground speed, Mach, and instantaneous vertical speed
    * Provides fuel flow functions suchas left and right fuel flow, fuel flow used, fuel remaining, fuel to and reserves at destination, range, cruise efficiency (nautical mileage), and endurance
    * Provides navigation data such as heading, ground track, and magnetic variation
    * Note: Aircraft must be equipped with indicator with heading synchro (bootstrap) to obtain this data
    * Compatible with Bendix/King KLN-88 Loran and KLN-90/A/B GPS receivers
    * Compatible with IIMorrow 604,612,614,618 Loran units
    * Compatible with Trimble 2000,2000A,2100,3000,3100 GPS receivers
    * Compatible with all Northstar, Garmin, and Magellan GPS/Loran units
    * Selectable for single or twin aircraft configurations
    * Red dot matrix (LED) display
