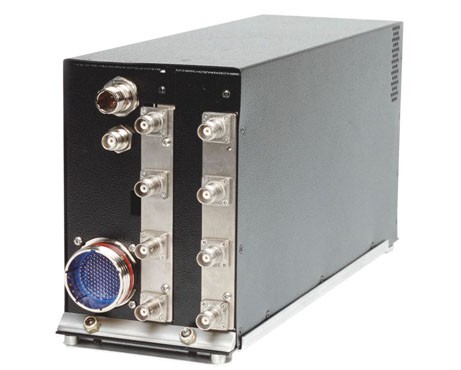

Multi Hazard System providing EGPWS and TAS

Brand: Honeywell Bendix/King

Features

    * Provides both TAS Traffic Awareness and EGPWS (Terrain) capability in a single unit (KMH-820)
    * Compatible for display on most modern multifunction displays (MFD)
    * Typical system consists of KMH-820 processor unit, (2) KA-815 directional antennas, configuration module, and installation kits
    * Uses KA-815 Top and bottom mounted (dual) directional antenna system (Note: See FAQ for antenna installation restrictions)
    * Dual antenna system provides estimated bearing to aircraft
    * Configuration module provides mean to store aircraft specific information such as aircraft configuration, GPS source, audio levels, etc.
    * Specifically designed for light turbine and piston aircraft
    * Radio Altimeter, landing gear or flap discretes or glideslope receiver inputs not required decreasing installation time
    * EGPWS portion of system is Class B TSO C151a compliant
    * TAS portion provides surveillance of transponder equipped aircraft within 10 nautical miles and/or +-10000 feet of altitude
    * KAC-502 traffic and KAC-504 EGPWS module required for use with Bendix/King KMD-550 and KMD-850 MFDs
    * System will interface to IVA-81D TCAS indicators and IN-182A radar indicators
    * Other displays with ARINC 735A may be used to display traffic with system
