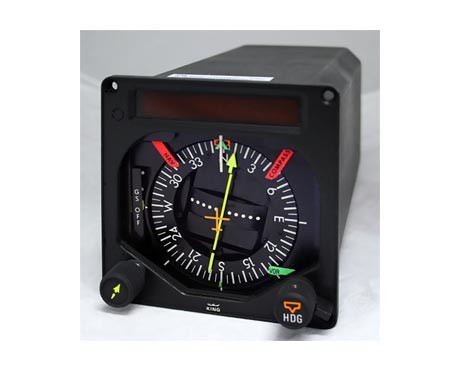

Pictorial Nav Indicator
Brand: Honeywell Bendix/King
Features
* With VOR/LOC/RMI/Glideslope indication
* 4 inch instrument presenting aircraft compass heading with respect to magnetic north, selected heading, selected course, and automatic bearing of ADF or RMI bearing read against servo driven compass card
* Able to interface to most modern GPS systems such as the GNS-430 and GNS-530 (see interconnect diagram)
* Versions originally produced that require course programming from remote keyboard of KNR-665A nav system
* Selected heading may be made remotely with Heading Select knob of KMC-340 mode controller when used with KFC-300 system
* DME display with numerical data and appropriate annunciation
* Displays distance to VORTAC or waypoint of left portion of display, range is indicated to nearest tenth of a nautical mile from 0-99 and to nearest nautical mile from 100-389
* Ground speed shown by middle portion of display indicated to nearest knot from 0-999 knots
* Time-to-station displayed by right portion of display to the nearest minute from 0-99 minutes
* Radar altitude shown as dashed lines on middle display between 1250 and 1000 feet and numerically to nearest 10 feet from 990 to 0 feet
* Radial inform from VORTAC or waypoint shown on middle display when RAD button on KNS-81 is pressed
* Digital display indicates source of frequency informtion controlling DME such as NAV1, NAV2
* Indicator will display RNV when the displayed range, ground sped, and time-to-station are derived from area navigation system
* Indicator will display all dashes if power is either turned on or momentarily lost during frequency HOLD
* Readout brightness is automatically controlled with respect to cockpit ambient lighting by photocell located to left of digital readout
* Slaved gyro heading
* Internal lighting
* For use with ARINC Standard Compass systems
* Versions available with 30 Hz resolvers commonly used with KNR-630 nav receivers (see table below)
* Versions available with 400 Hz resolvers commonly used with KNR-634 and KNR-634 nav receivers (see table below)
* Versions available with both 30 and 400 Hz resolvers (see table below)
* Versions originally produced that are compatible with 3 or 4 wire or NO RMI units (see table below)
* Models available with black or gray bezel (see table below)
* Models available with 5 or 28V lighting (see table below)
