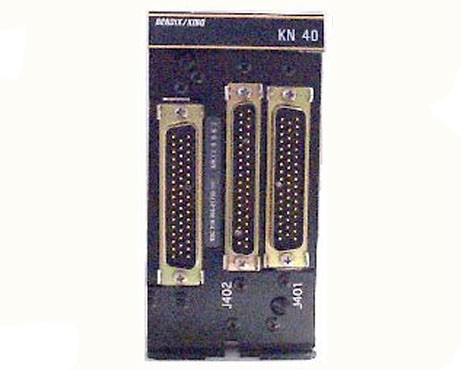

Dual VOR Composite Converter

Brand: Honeywell Bendix/King

Features

    * Remote mounted single or dual NAV Converter
    * Simulates Master DME Indicator
    * Omnibearing, Localizer Deviation, Glideslope Deviation, and Marker Beacon output informatoion provided in ARINC 429 format by two 429 output ports
    * Sine/Cosine OBI output and NAV Super Flag output drivers are provided by all versions
    * Optional 3-Wire Synchro RMI driver available in units with XYZ RMI option
    * Solid state design allows rigid mounting in any position

Following labels are transmitted on ARINC 429 transmitter ILS Mode:

    * 173, BNR Data, Localizer Deviation
    * 174, BNR Data, Glideslope Deviation
    * 222, BNR Data, VOR Omnibearing/Marker

Following labels are transmitted on ARINC 429 transmitter VOR Mode:

    * 222, BNR Data, VOR Omnibearing/Marker

Following labels are received on ARINC 429 receiver ILS Mode:

    * 017, BCD Data, Selected Runway Heading
    * 033, BCD Data, ILS Frequency
    * 034, BCD Data, VOR/ILS Frequency
    * 105, BNR Data, Selected Runway Heading
    * 377, BCD Data, Equipment Hex ID Code

Following labels are received on ARINC 429 receiver VOR Mode:

    * 024, BCD Data, Selected Course #1
    * 027, BCD Data, Selected Course #2
    * 034, BCD Data, VOR/ILS Frequency
    * 100, BNR Data, Selected Course #1
    * 110, BNR Data, Selected Course #2
    * 377, BCD Data, Equipment Hex ID Code
