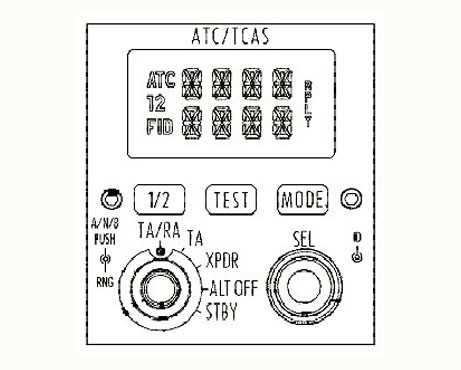

Mode S Transponder Control

Brand: Honeywell Bendix/King

Features

    * Control for use with MST-67A Enhanced Mode S Transponder (-2001/2101 versions)
    * Complies with Enhanced Elemenatary Surveillance mandate for Mode S transponders in conjunction with MST-67A (-2001/2101)
    * FID pushbutton allows entry of alpha numeric flight ID and annunciates FID on display
    * Compatible with the Collins TDR-94D transponder
    * Contains all controls required for transponder operation including TEST, STANDBY, ON (transponder), ALTITUDE, VFR, and IDENT
    * TCAS Range Switch selects the TCAS nautical mile traffic display according to the installed discrete range option (see supplemental info below)
    * Can also serve as aircraft's TCAS controller for TCAS equipped aircraft
    * Microprocessor based
    * ABOVE/NORMAL/BELOW selects relateive altitude display limits for non-threat category aircraft on traffic display
    * TA selection places the TCAS in the Traffic Advisory mode (TCAS I & II)
    * TA/RA selection places the TCAS in the Traffic Advisory/Resolution Advisory mode (TCAS II)
    * FL (TCAS FLight Level) selection causes the TCAS indicator to change displayed altitude from Relative Altitude to absolute altitude
    * Lamps can be powered by 5 Vac, 5 Vdc or 28V dimming source
    * Black or gray faceplate available (see table below)
    * White, Amber, or Night Vision Goggle (NVG) display available (see table below)
    * Versions available that provide control of two, individually selected transponders (see table below)
    * Versions available with ON/OFF switch to turn control unit ON or OFF (see table below)
    * Versions available compatible with TCAS I CAS66A (see table below)
    * Versions available compatible with TCAS II CAS67A (see table below)

Discrete options for TCAS traffic display range control include:

    * "Normal" traffic display range control include ranges of 3,5,10,15 nm
    * "Extended" traffic display range control include ranges of 3,5,10,15,20,40 nm
    * Range Disabled
