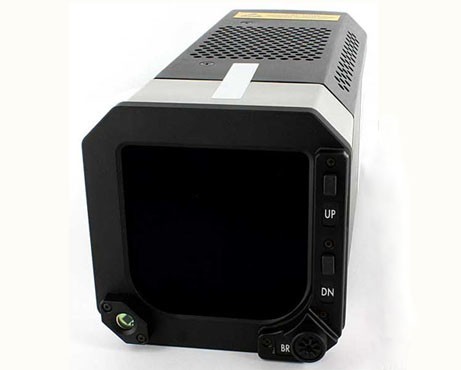

TCAS Indicator
Brand: Honeywell Bendix/King
Features
* TCAS indicator used in CAS-67A TCAS system
* Combined vertical speed, traffic advisory and resolution advisory display
* Meets requirements of both type B&C VSI indicators with pneumatic or air data electrical inputs
* ARINC 500 and 700 series air data input
* High-speed ARINC 429 data input
* Solid state, no mechnical parts
* Pushbutton range control on front panel of TA/RA/VSI display (optional)
* Range control allows selection of 1,3,5,10,15,20, or 40 nautical mile display range
* Ranges and range groups available are defined by software version
* IVA-81A offers better contrast/aperture ratios and viewing angles than IVA-81A while drawing less current and producing higher reliability
* TA selection (SEL) switch declutters all traffic symbols from display (optional)
* Brightness control (optional)
* Black, gray, brown, or blue face color available
* 115 VAC or 28VDC power input available
* 5 VAC/DC or 28VDC panel lighting available
* Mating connector P/N M8372375R2041N
* Direct fit, form, function replacement for IVA-81A TCAS Indicators
* Supercedes and replaces the IVA-81A Indicator
